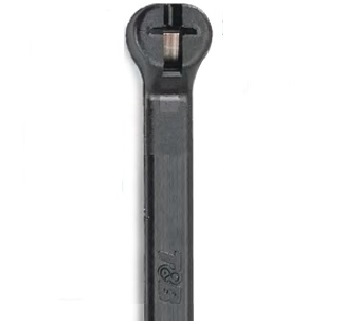

ABB通貝耐候型尼龍線纜扎帶 6.9×340mm TY27MX/TY527MXR
Catalog No. : TY27MX
Description: CABLE TIE 120LB 13.4IN UV BLK NYLON
UPC: 786210824789
High Performance Cable Tie, Black Color Nylon 6.6, Length of 340mm (13.4 Inches) for Bundle Diameter up to 102mm (4 Inches), Width of 6.86mm (0.27 Inch), Tensile Strength Rating of 534 Newtons (120 Pounds), Operating Temperature of -30 Degrees Celsius (-22 F) to 85 Degrees Celsius (185 F), Bulk Pack.
-
Low profile head is designed to prevent snags on uneven surfaces and easier to pull through bulkheads. Non-magnetic stainless steel locking device insures both maximum strength and the right tightness every time.
-
Because there are no notches, Ty-Rap ties provide an infinite number of locking positions while fastening the tie at the precise bundle diameter needed.
-
The No-Slip Tail provides easy grip during tensioning. Ty-Rap ties feature a unique friction surface designed to reduce slippage during installation.
-
Smooth, notchless body reduces stress concentration points under tension, making the tie stronger and lower profile than notched body ties. Ribbed and Stippled body grips the bundle and prevents slippage. Rounded edges protect insulation, preventing sharp edges from damaging cables.
-
316 stainless steel barb is corrosion resistant and provides greater longevity
-
Application Tools: ERG120, WT197
Descriptors
|
Category
|
Cable ties
|
|
Special Features
|
Low profile head is designed to prevent snags on uneven surfaces and easier to pull through bulkheads. Non-magnetic stainless steel locking device insures both maximum strength and the right tightness every time.
|
Specifications
|
Material
|
Nylon/Polyamide 6.6
|
|
Color
|
Black
|
|
Lock Mechanism
|
Stainless Steel Barb
|
|
Tensile Strength
|
120 pounds , 534 newtons
|
Classifications
|
Brand Name
|
Ty-Rap
|
|
Standard
|
UL E49405
UL E49405
|
Dimensions
|
Width
|
0.27 in , 4.8 mm
|
|
Length
|
13.5 in , 342 mm
|
|
Thickness
|
0.06 in , 1.5 mm
|
|
Bundle Diameter
|
Max 4.02 in , Max 102 mm
|
|
